Ready-made AstroReflect primary mirrors, available for immediate delivery.
The mirrors below are finished, coated and fully tested. Each one is shown with its own full-aperture interferometric test report, so you know exactly what you will receive. If none of them matches your needs, any mirror can also be made to order – see Telescope Mirrors.
455mm f/4.0 – AR2617
Availableready in 1 week
- Diameter
- 455 mm
- Thickness
- 38 mm
- Focal ratio
- f/4.0 F ≈ 1820 mm
- Coating
- Enhanced Aluminum — 95% reflectivity
- Glass
- Supremax®

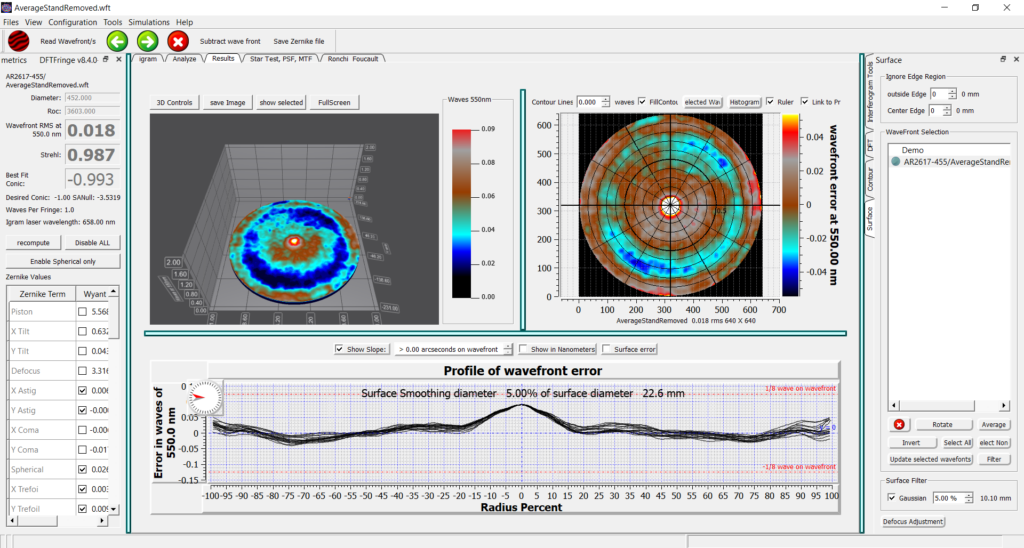

Wavefront values from full-aperture interferometry at 550 nm.
300mm f/5.0 – AR2623
Available- Diameter
- 300 mm
- Thickness
- 25 mm
- Focal ratio
- f/5.0 F ≈ 1500 mm
- Coating
- Standard Aluminum — 90% reflectivity
- Glass
- Borofloat® 33
Wavefront values from full-aperture interferometry at 550 nm.
255mm f/4.0 – AR2618
Available- Diameter
- 255 mm
- Thickness
- 25 mm
- Focal ratio
- f/4.0 F ≈ 1020 mm
- Coating
- Standard Aluminum — 90% reflectivity
- Glass
- Borofloat® 33
Wavefront values from full-aperture interferometry at 550 nm.
Every mirror listed here has been measured with a full-aperture interferometer before being offered for sale – the report next to each mirror is the real measurement of that particular mirror, not a sample.
In addition to interferometry, our mirrors are also checked with the classical Ronchi and Foucault tests. Ronchi and Foucault images of our mirrors, together with all interferometric test reports we have issued, can be found on the Our Mirror Test Results page.
